Volvo EC & L Series Excavator / Loader Limp Mode & ACM Derate Solution (EC250E, EC300E, EC380E, L150H)
The Volvo Derate Nightmare
When a heavy Volvo excavator or loader goes down on a live earthmoving or quarry site, the financial cost mounts by the minute. For operators running machines like the Volvo EC250E, EC300E, EC380E, or the heavy-duty L150H loader, an unexpected SCR or Aftertreatment Control Module (ACM) fault often means an immediate drop into severe limp mode or a countdown timer to a complete engine shutdown.
Standard diagnostic fixes such as forced regenerations, sensor replacements, or temporary fault clearing frequently fail to solve the root cause. Worse still, many general remapping companies turn these jobs away because Volvo's ACM architecture requires splitting the module open on the bench rather than a simple OBD flash.
At AJ AGRI LTD, based in central Fife and covering all of Scotland, we specialize in advanced off-highway bench solutions, safely bypassing chronic aftertreatment faults to get your Volvo machinery permanently back to work.
Common Symptoms Across the Volvo E-Series & L-Series Range
While this architecture spans several models across Volvo's heavy lineup, operators experiencing ACM or exhaust aftertreatment failures typically report:

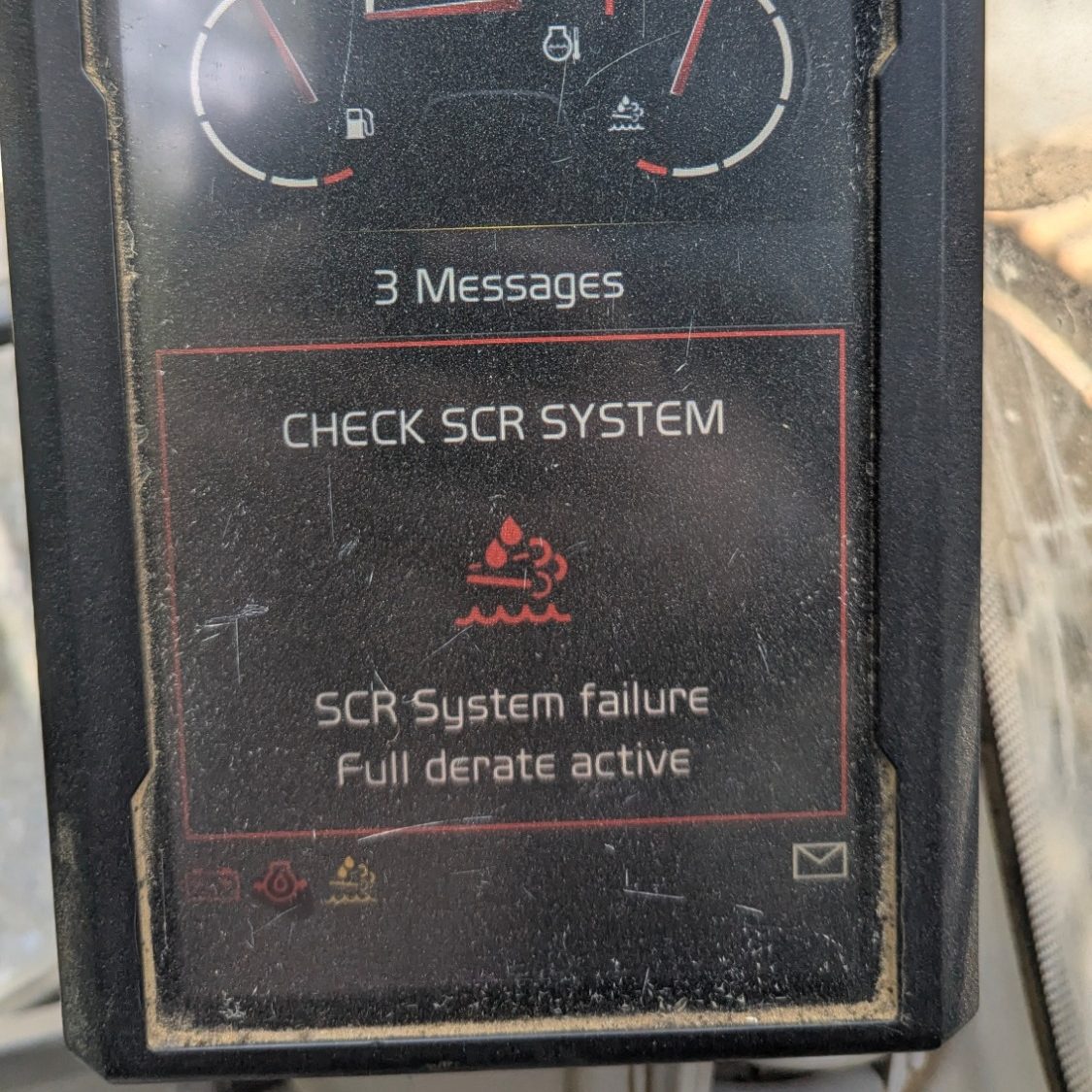

Severe torque derate and power loss making bucket loading or trenching impossible.
Persistent dashboard warning codes related to DEF/AdBlue dosing, NOx sensor correlation, or temperature thresholds.
Active countdown timers forcing a full machine shutdown.
Inability to complete manual service regenerations due to saturated particulate filters or unresponsive CAN-bus communication.
Frequently Encountered Volvo Fault Codes (SPN / FMI)
If your Volvo excavator or loader is throwing up persistent dashboard alarms, you are likely seeing one of these common diagnostic trouble codes related to the DPF, SCR, or EGR systems:
SPN 3719 / FMI 15 (DPF Soot Level High): Indicates the particulate filter has exceeded threshold limits, triggering progressive derates and blocking normal passive regeneration cycles.
SPN 3361 / FMI 2 or 13 (AdBlue / DEF Dosing System Malfunction): Often caused by pump pressure drops, injector blockages, or tank quality sensor failures.
SPN 4364 / FMI 1 (NOx Conversion Efficiency Low): Triggers when the downstream NOx sensor detects poor catalytic reduction, commonly linked to failing catalysts or dosing issues.
SPN 2791 / FMI 3 or 4 (EGR Valve Position Sensor Circuit): Points to carbon buildup sticking the Exhaust Gas Recirculation valve or an electrical fault in the feedback circuit.
SPN 3216 / FMI 2 (Aftertreatment Temperature Sensor Fault): Sensor drift or open-circuit faults across exhaust temperature monitoring points.
Why Most Mappers Can’t Touch Volvo ACMs
A major hurdle for fleet managers is finding a technician equipped to handle modern Volvo heavy machinery. Standard plug-and-play OBD flashing tools cannot bypass or rewrite the security layers on these systems.
The ACM Challenge: Volvo’s Aftertreatment Control Module (ACM) is tightly sealed. To properly manage or reconfigure the software parameters, the physical unit must be carefully split open on the bench to access the processor directly.
The Risk of Inexperienced Hands: Attempting this without specialized bench-flashing equipment risks bricking the module, leading to expensive OEM replacements and weeks of waiting for parts.
Case Study: Volvo Heavy Plant Recovery in Scotland
Machine Specs: Volvo EC380E (12.8L - 308hp) & Volvo L150H Platform Architecture
The Problem: Heavy excavators and loaders brought into our workshop locked in unyielding power derates due to recurring internal ACM and sensor communication failures (including persistent soot and NOx correlation codes), rendering them useless on high-output earthmoving projects.

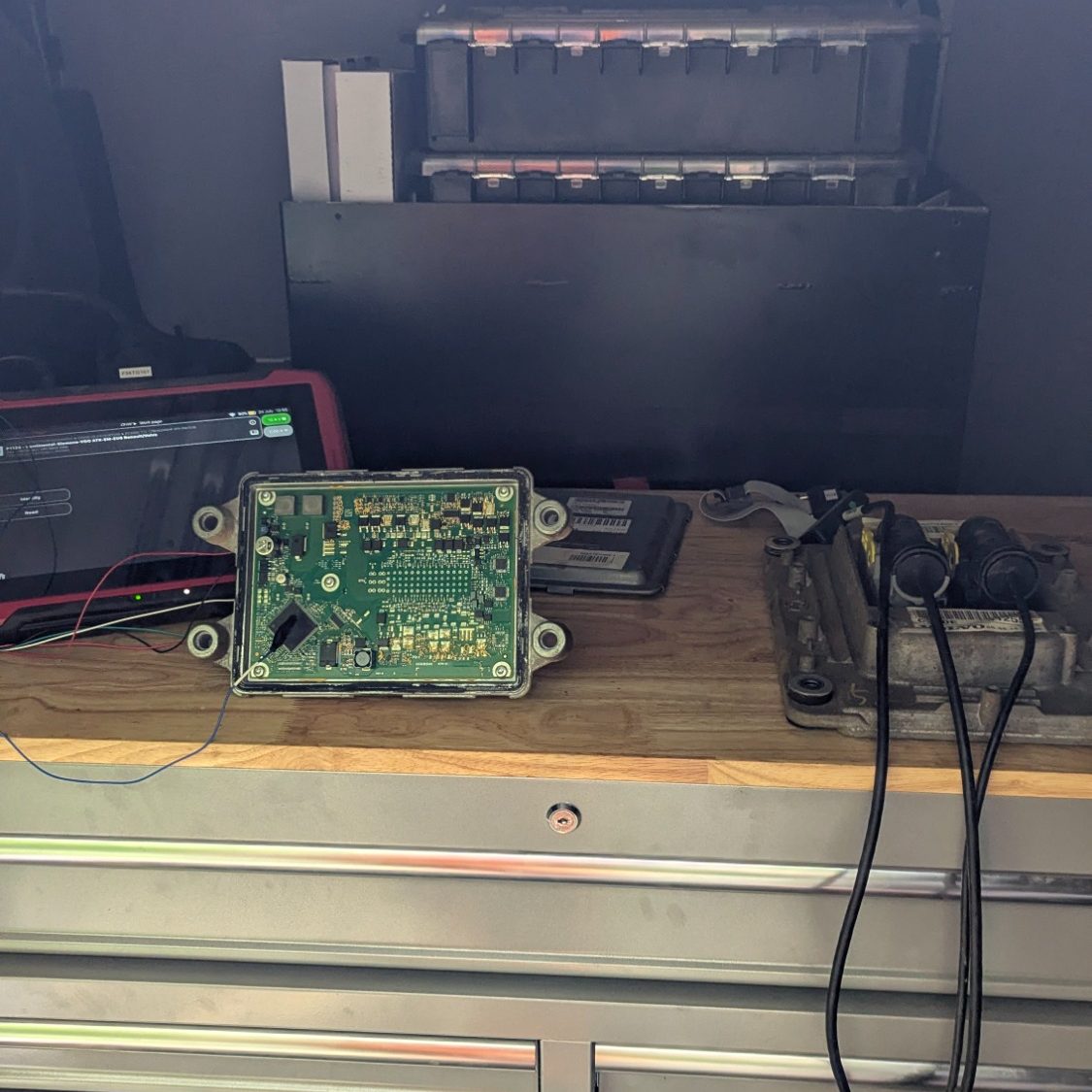

The Solution: We pulled the ACM, safely performed a bench-split procedure to interface directly with the board, and applied a tailored off-highway software calibration. This safely removed the failing aftertreatment constraints from the operational loop while maintaining engine health and full hydraulic performance.
The Result: The machines were successfully returned to site across Scotland with full power restored, zero dashboard derate timers, and total operational reliability.
ELIMINATE SITE DOWNTIME TODAY
Because Volvo utilizes a standardized engine and control module architecture across its heavy plant lineup, our specialist bench-remapping solution covers a broad range of equipment, including:
Volvo Excavators: EC250E, EC300E, EC380E (and similar E-series models)
Volvo Loaders: L150H (and shared platform L-series wheel loaders)
Engine Platforms: Volvo 7.7L and 12.8L high-output D-series heavy-duty diesel engines.
Get Your Volvo Plant Back to Full Power with AJ AGRI LTD
Don't let a stubborn ACM fault, persistent SPN code, or DEF system failure stall your civil engineering, quarrying, or agricultural operations. Operating out of central Fife and covering all of Scotland, AJ AGRI LTD brings the advanced bench-flashing expertise most generic tuners can't match straight to your doorstep or workshop.
